PET strap making machine high-speed PP PET strapping machine automatic winding machine
Product Description of PET strap manufacturing machine:

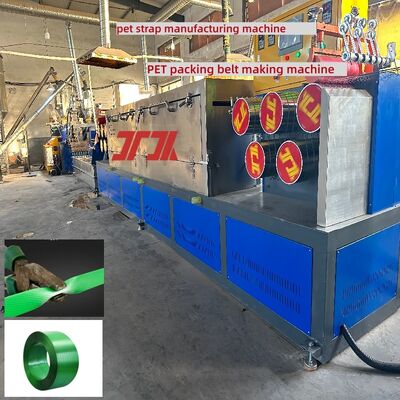

pet strap manufacturing machine / PET strap making machine
pet strap manufacturing machine is a high speed and environmentally friendly extruder, which can produce PET belts with width 9-32mm, with the following advantages:
1. Bottle flakes----- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials------ finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
PRODUCT DESCRIPTION
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Core Components of PET Plastic Steel Strip Equipment:
1. Five-Roller Stretching System
Stretching Unit: Equipped with 3-5 sets of traction rollers, utilising silicone or chrome-plated rollers to prevent strip scratching; adjustable stretching speed range of 5-20m/min accommodates production requirements for plastic steel strips of varying thicknesses (0.4-1.2mm).

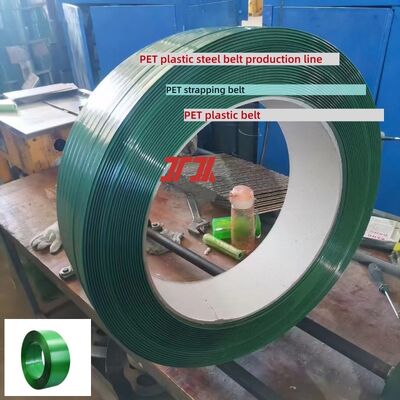

PET plastic steel belt
PET Plastic Strapping/PET Binding Strap
PET: Polyethylene terephthalate, abbreviated as PET. PET is a green or black, highly crystalline polymer with a smooth and glossy surface
.Features:
Elongation ------ PET plastic steel belt is a packaging material with good tensile strength and excellent welding performance.
Elongation ------ It has a good tension retention ability. It will not relax for a long time after being packed, thus ensuring that the goods have excellent impact resistance during long-distance transportation.
FQA:
Q: What is the voltage of the PET strap making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET strap making machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the pPET strap making machine?
A: 9-32mm
Q: Can the PET strap making machine be customized?
A: Customization supported
Q: Where does the PET strap making machine come from?
A: China.
Q: What are the certifications for the PET strap making machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET strap making machine?
A: 1 set
Q: What is the weight of the PET strap making machine?
20T, 40GP container * 3PCS
